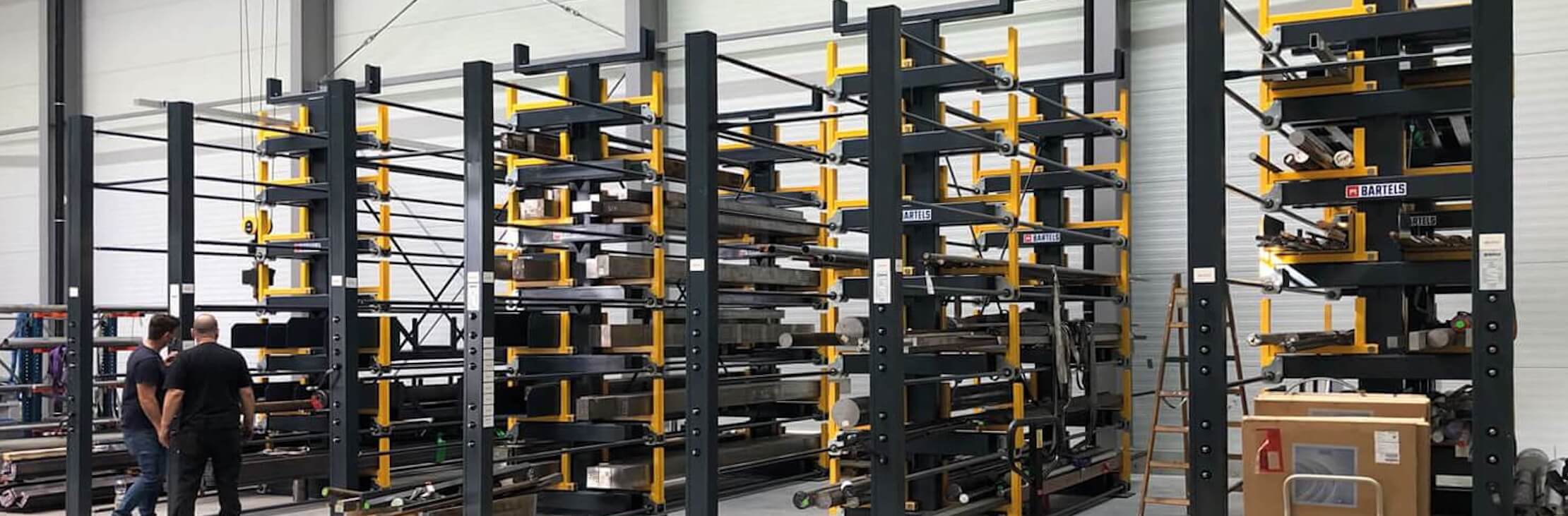

Long material storage

Roll-Out Rack Read more	Roll-Out Rack with manual extraction Read more	Drawer Rack for lengthy goods Read more	Long Material Pallet Read more

Honeycomb Rack Read more	Honeycomb Rack Starr Read more	Cassette Drawer Rack Read more	Automatic-Tower for Long Material Storage Read more

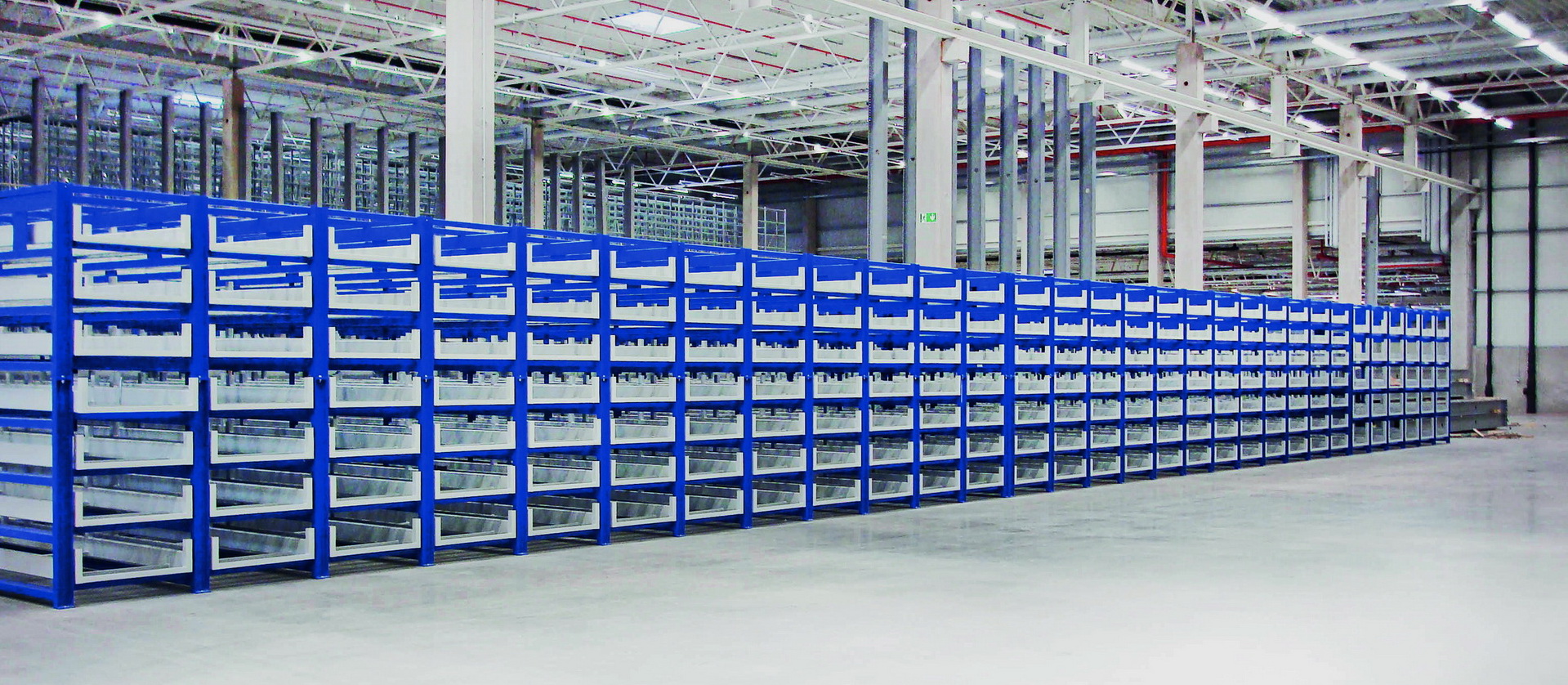

Storage of sheets

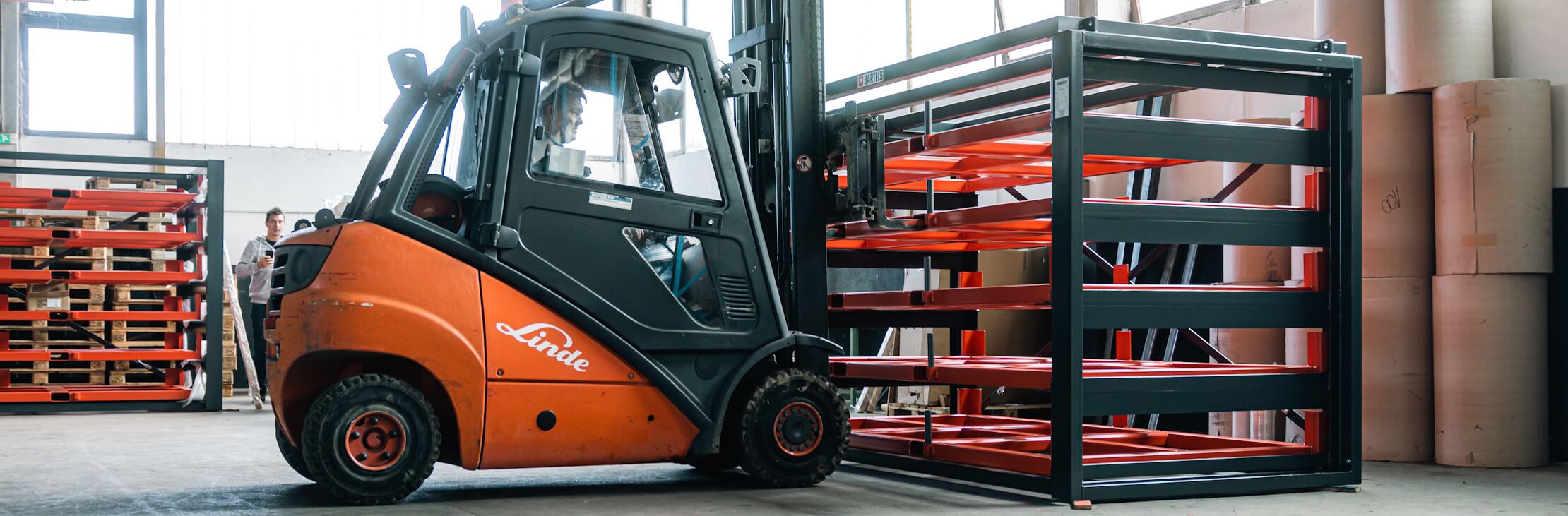

Drawer Rack for sheets Read more	Flat Pallet Magazine Read more	Compact System Read more	Flat Pallet Rack Vertical Read more	Flat Pallet Rack TRG Read more	Flat Pallet Rack TR Read more	Automatic-Tower for Storage of Sheets Read more

Storage of heavy loads

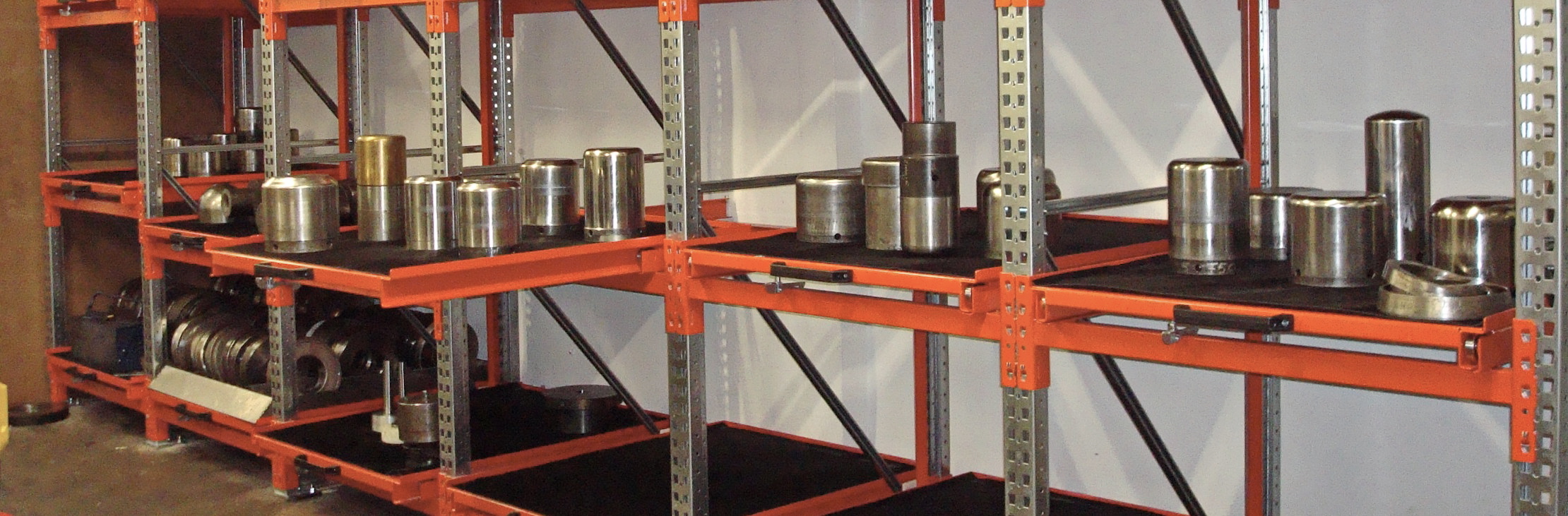

Heavy Duty Rack Starr Read more	Heavy Duty Rack Flex Read more

Pallet Racking Drawers

Pole Mounted Drawers Read more	Rack Mounted Drawers Read more	Floor Mounted Drawers Read more

Pallet handling

95º Pallet Inverter Read more	180º Pallet Inverter Read more	Pallet Changer Pallet X Read more	Pallet Magazine Palett Master Read more	DStacker Pallet Magazine Read more	Pallet Stacking System PSS Read more	System mesh box SGB Read more

Any questions? Write us!

The Bartels Online Shop

Alternatively, we also have company equipment – take a look at our online shop and convince yourself of the monthly changing offers. An extensive and professional range of conveying, lifting and storage equipment. Click here!

Bartels Online Shop

roll-aus-regal-1600-doppelseitig-material-kran-02-rev-a

max. 7.000 mm

min. 100 mm

max. 1.500 mm

max. 2.600 kg per arm

Data sheet (pdf)

Roll-Out Rack

The revolutionary storage system for lengthy goods

Optimise your warehouse with a Roll-Out Rack by Bartels. The high-quality cantilever arm racks are the ideal choice for the storage of your lengthy goods or other bulky material. Goods to be stored can be light plastic tubes, steel pipes or profiles and wooden boards. The racks can be flexibly adapted to different storage material heights and load requirements.

Convince yourself of our Roll-Out Rack – More pictures

Advantages

Advantages of the Roll-Out Rack

Space gain
Storage is done directly with the hall crane. Wider aisles for forklift trucks, stacking cranes, etc. are therefore unnecessary
Excess lengths
Storage of lengthy goods with a length of 25 m and above possible
Safety
Entire roll-out rack can be accessed and loaded or unloaded freely, no “pushing in” or “pulling out” of the shelves necessary
Time-saving
Without restacking using the hall crane, the racks can be loaded, or transport vehicles can be loaded or unloaded
Quick
As it can be accessed quickly at any time
Easy handling
The rack can usually be operated by one person
Space-saving
Wide aisles for lift trucks or forklifts are also unnecessary on the side ends, as lengthy goods can easily be handled by means of the warehouse crane.

Operation

A crank turning a spindle rolls out each arm of the roll-out rack. The roll-out movement is controlled and limited by the depth of the shelf arm. The ratio of spindle shaft to crank rotation is 2.36: 1. With a full load of 5.000 kg, an initial crank force of approx. 15 kg may be required. After that, only little force is necessary.

Each rack unit consists of at least two base structures, longitudinal binders and a control mast for for each rack side. Depending on the type of lengthy goods, several base structures can be implemented for each rack at a customer-specified spacing. Storing the goods on very high shelves is possible with the help of e. g. platform ladders or lifts.

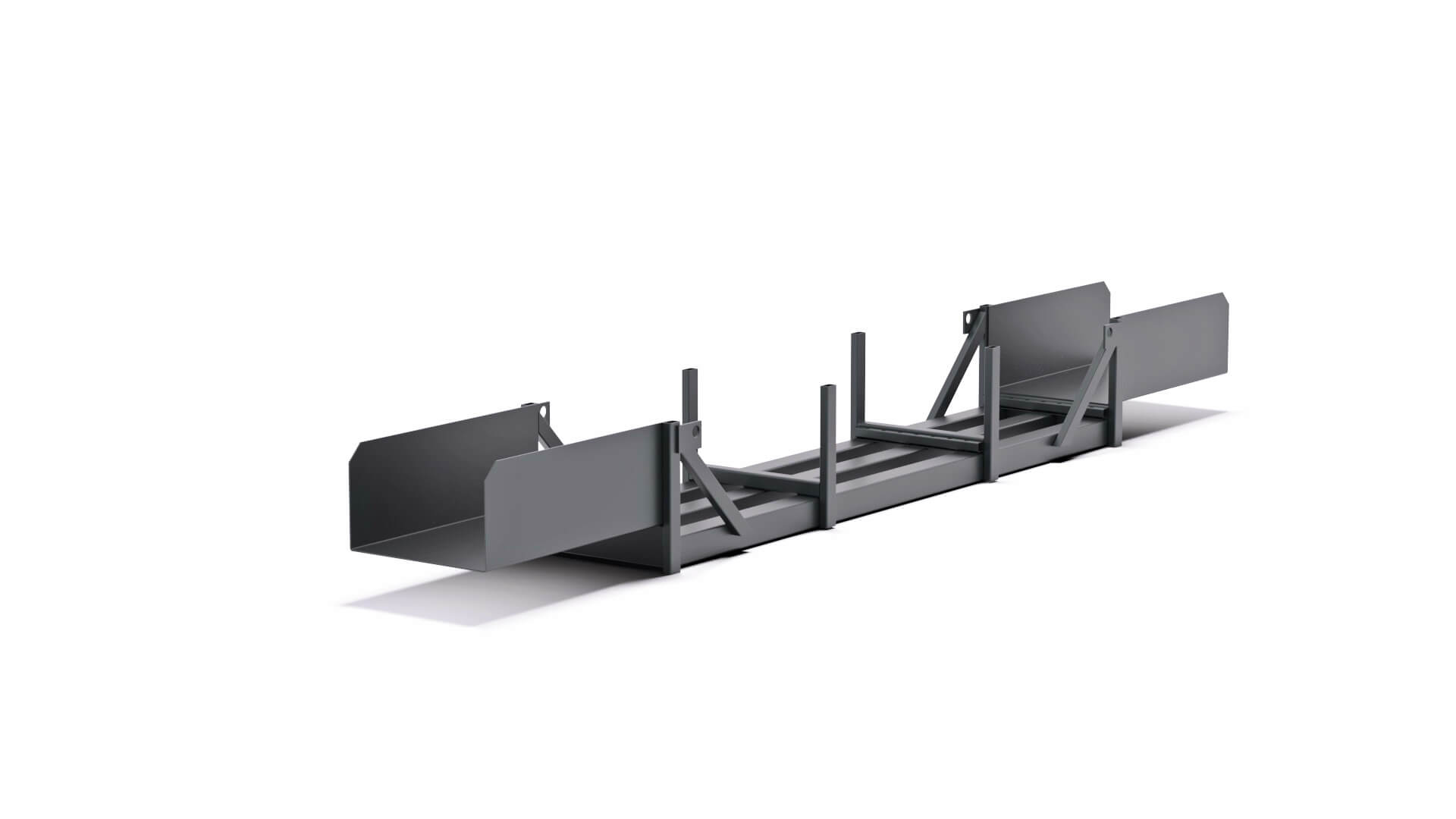

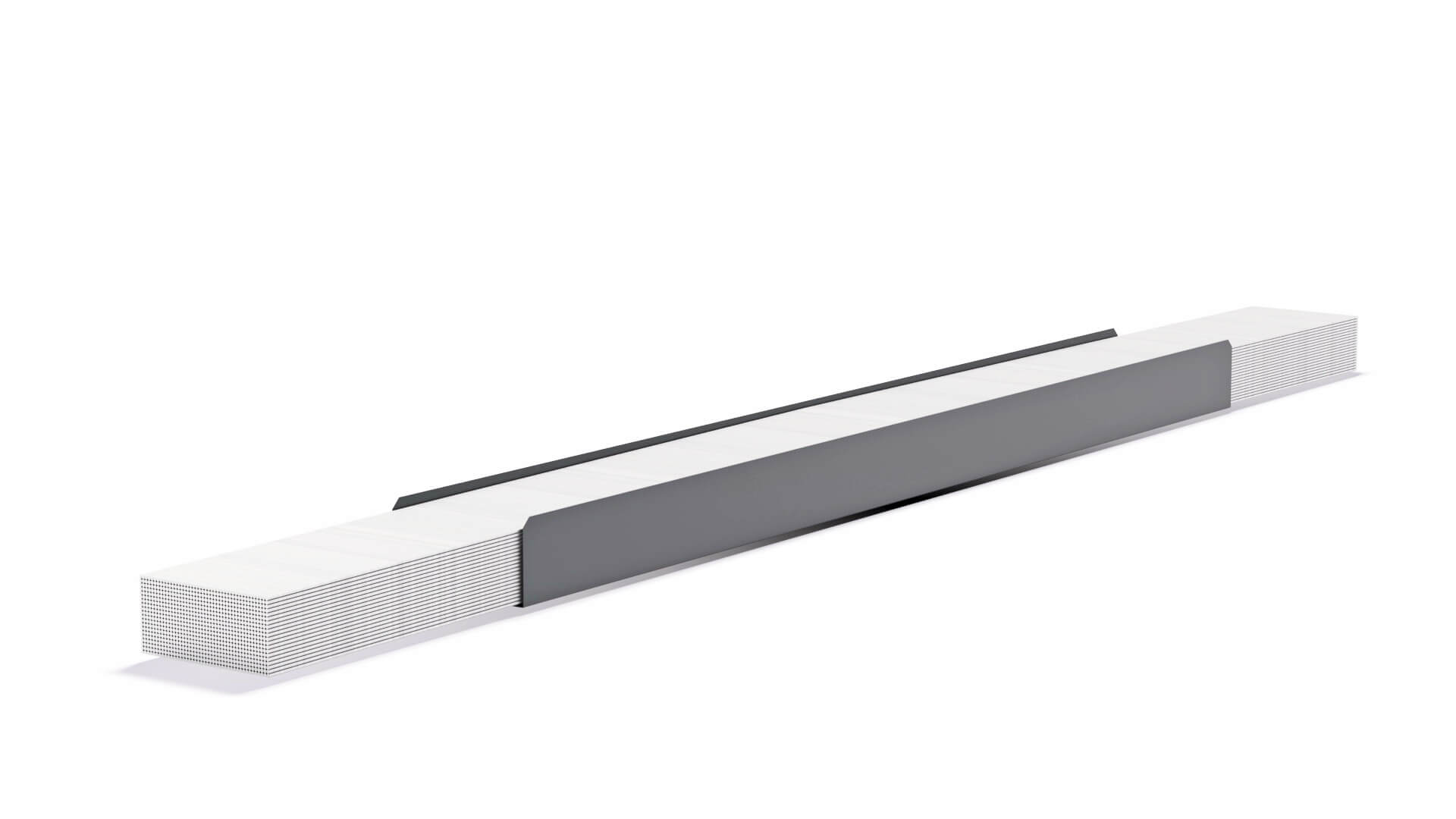

Residual lengths can be stacked with supporting pallets, or the shelf arm spacing is set as required.

Design

Special rotary and rigid construction.
Moving parts are supported by ball bearings.
The individual structures (two control masts and two rack structures in the standard version) are completely welded and assembled units.
The cross-toothed driveshaft has a non-slip surface providing a good grip in order to ensure controlled rotary and roll-off movements of the pushing arm even under load.
Standard colour: Structure blue RAL 5012, roll-out arms red RAL 2002.
Per request: Custom dimensions and paint coats available in all RAL colours – please inquire!

Video

Accessories for Roll-Out Rack

Trays and boxes for leftover pieces
Electrically driven roll-out shelves
Various colours / custom paint coats in all RAL colours
Custom dimensions

Compartment divider pluggable

Compartment divider strips can be variably adapted to the various storage requirements. This ensures the storage of a wide variety of long materials or lengths per compartment.

For sensible organisation of different long materials
Can be variably adapted to storage requirements
For profile widths from 40 to 120 mm
Length 480 mm
Four perforations Ø 16.5 mm
Hole spacing approx. 100 mm
Subdivision into four compartments
Stanchion Ø 16 mm for shelf height 300 mm
Hot dip galvanised or electrogalvanised

Compartment dividers infinitely adjustable

Compartment divider strips can be variably adapted to the various storage requirements. This ensures the storage of a wide variety of long materials or lengths per compartment.

Mounting on support profile
Infinitely adjustable
Can be variably adapted to storage requirements
For profile widths from 40 to 120 mm
For shelf height 300 mm
Stanchion square tube 30 mm
Painted or galvanised

Custom-made Roll-Out Rack

To specify your request you may use our inquiry form.

Download enquiry form

If you need to store special materials or certain spatial requirements must be met, our consulting engineers will be happy to create individual concepts for you.

Safety thanks to rack inspection

The Roll-Out Rack requires mandatory inspection. As safety is always a top priority, we offer rack inspections according to DIN EN 15635. Serious accidents and high repair costs can be avoided by effectively preventing damage to the storage equipment! Our TÜV (German Technical Inspectorate) certified rack checker provides the annual safety check for your warehouse equipment in accordance with DIN EN 15635 according to BGR 234. Learn more about the rack inspection.
